Introduction

Bagasse from sugarcane mills is a significant agricultural waste, still containing 50% cellulose [1-4]. Cellulose, a polymer made of glucose, consists of β-1,4-glucoside units linked in a straight, unbranched chain. This structure contributes to its slight stiffness [5-8]. Widely used in various industries, cellulose serves as an adsorbent, drug carrier, and food additive. It is valued both in its natural form and when chemically modified to create derivatives [9-11]. Cellulose stands out as an adsorbent for several reasons: it is renewable, degradable, and can be modified to meet specific needs [12-14]. To enhance its physical and chemical properties and widen its applications, cellulose is converted into various derivatives, such as cellulose xanthate [15-17]. This particular derivative is non-flammable and exhibits higher crystallinity than natural cellulose [18, 19]. The process to produce cellulose xanthate involves reacting alkaline cellulose with carbon disulfide (CS₂) [20-22].

Beads, or spherical microcapsules, are prepared as coated or encapsulated solid substrates [23-26]. They feature a uniform particle size distribution, highly porous structures, high surface area, chemical reactivity, and mechanical strength [27-30]. Beads made from the biopolymers alginate and cellulose are more effective in adsorption than flakes, due to their higher adsorption capacity [31-34] and larger surface area [35-37]. One common method for forming beads is ionic gelation [38-40]. This method utilizes a cross-linking reaction between a polyelectrolyte [41, 42] and its multivalent ion pair, enhancing the material's mechanical strength [43-45]. Alginate forms a hydrogel upon interaction with divalent cations [46]. The adsorption capacity of beads can be increased by adding pore-forming agents like CaCO₃ [47-49].

The mixture of alginate and cellulose affects the beads' adsorption capacity [50]. Beads made solely of alginate have a 19% adsorption capacity, which is low compared to those with 10-25% cellulose, showing capacities of 68-80% [51, 52]. Alginate-only beads are less porous and more wrinkled [53, 54].

Research has shown the importance of determining the optimal alginate/cellulose xanthate composition, which is marked by significant swelling power. Viscose solutions were prepared with NaOH concentrations of 4, 6, and 8%. The best formulation was used to make beads with varying alginate to cellulose xanthate ratios (2:0, 2:2, 2:6, 2:16, and 2:30) and the addition of zinc acetate as a crosslinking agent. The functional groups of the extracted cellulose were identified using FTIR. Gravimetric analysis and optical microscopy determined the optimal bead composition based on swelling power. DSC was used to observe thermal characteristics, while SEM-EDX analyzed surface morphology and material properties.

Experimental

Materials and Methds

The bagasse used in this study was obtained from Malang. All chemicals used were of analytical grade and purchased from Merck, including sodium hydroxide (NaOH), hydrochloric acid (HCl), carbon disulfide (CS₂​), sodium chlorite (NaClO₂​), sodium alginate, and zinc acetate.

Extraction of cellulose from bagasse

Bagasse (100 g) was immersed in 2,000 mL of 10% w/w sodium hydroxide (NaOH) at 90 °C for 1 hour. The obtained pulp was rinsed with deionized water several times to wash away the base-soluble structures. The pulp was then treated with 1% w/w sodium chlorite (NaClO₂​, 200 mL) at pH 5, adjusted with 10% w/w acetic acid at 70 °C for 1 hour, followed by neutralization with deionized water. After that, cellulose was hydrolyzed through reflux with 5% w/w hydrochloric acid (HCl) in a 1:20 solid-to-liquid ratio at 95 °C for 1 hour to remove non-crystalline components, thus separating the dispersed microfibres [55].

Determination of the best NaOH concentration for viscose solution preparation

Cellulose pulp (5 g) was soaked in 40 mL of 20% w/w sodium hydroxide (NaOH) for 3 hours and then stored for ageing at room temperature for 60 hours. Afterwards, the suspension was reacted with 2.5 mL carbon disulfide (CS₂​) in a shaker incubator (shaking rate: 150 rpm) at 25 °C for 3 hours to produce cellulose xanthate (T. Wang, Li, and Si 2013). Viscose solution was prepared by dissolving cellulose xanthate into 30 mL of different NaOH concentrations: 4%, 6%, and 8% w/w. Three sets of viscose solution were obtained and labelled CXA-1, CXA-2, and CXA-3. The characteristics of the viscose solution, including density, viscosity, and molecular weight, were determined. Sodium alginate (2 g) was immersed in 50 mL of water and subsequently reacted with acetic acid (CH₃​COOH) until thoroughly dissolved. The obtained solution was treated with 2 g of CXA (each of CXA-1, CXA-2, and CXA-3), 2 g calcium carbonate (CaCO₃​), and deionized water added to make up 100 mL, and then homogenized. The solution was dripped into a 5% zinc acetate solution using a syringe needle and soaked for 24 hours. Thereafter, the obtained beads were neutralized with deionized water. Removal of CaCO₃​ granules from the beads was carried out by reacting the beads with a diluted acidic solution. One volume of the cross-linked beads was mixed with eight volumes of hydrochloric acid (HCl, 1 mmol/L) in a flask and then placed in a shaker incubator at 150 rpm until no bubbles were observed. The attained beads were rinsed to a neutral pH with deionized water [55].

Three sets of beads were obtained and labelled as CXA-1, CXA-2, and CXA-3. The best NaOH concentration for viscose solution preparation was determined based on the density, viscosity, and molecular weight of the solution and the swelling power of the produced beads.

Preparation of beads with various compositions of alginate:cellulose xanthate

Cellulose xanthate with the best properties was utilized to determine the optimal composition ratio of alginate to cellulose xanthate for bead synthesis. The compositions evaluated were 2:0, 2:2, 2:6, 2:16, and 2:30.

Density, viscosity, and molecular weight

Density of the viscose solution is defined by the following equation, where d  is the density, m is the mass, and v  is the volume.

While viscosity of the viscose solution is defined by Equation (2).

Where, η₀ is water viscosity, η₁ is the viscosity of solution, t₀ is the time it takes for the water to flow through the capillary pipe, and t₁ is the time it takes for the solution to flow through the capillary tube.

Molecular weight of the viscose solution is calculated with Euqations (3) and (4).

In which, η* is solvent viscosity (Pa.s), t* is solvent flow time (s), η is viscosity of the solution, t is solvent flow time (s), η_sps is specific viscosity, η_int  is intrinsic viscosity, c is solvent concentration, K, α is Mark-Houwink constants (K = 9.8 × 10^-3 and α = 0.9), and M is the molecular weight.

Beads swelling

Swelling ratio is determined by immersing 0.5 g sample in excess deionized water at 20 ^˚C. The swelling ratio of the beads is defined by Equation (7).

Where, 𝖶˳  and 𝖶t  is the mass of the dry and swollen beads, respectively, at a time (t).

FTIR-spectra analysis

FTIR analysis was performed using a Bruker Alpha instrument. A 5 mg sample was pressed into a disk for measurement.

DSC-thermal analysis

Several milligrams of the sample were placed in a crucible and then positioned inside a DSC furnace. Measurements were conducted over a temperature range of 30-400 °C at a heating rate of 10 °C/min.

Optical microscope-shape and diameter analysis

The shape and diameter of the beads formed of alginate:cellulose xanthate were observed using optical microscope at 0.75 mm magnification and the results were analyzed with ImageJ software.

Characterization of surface morphology with SEM-EDX

Surface morphology was characterized using SEM-EDX at magnifications of 500x and 15,000x.

Results and discussion

In this study, the production of alginate-cellulose xanthate beads resulted in structures with enhanced rigidity. This effect is attributed to the cross-linking agent that fortifies the bead's outer layer. Specifically, cross-linkages form between the alginate's negatively charged carboxylate groups (-COO-) and divalent zinc ions (Zn²⁺). In addition, the cellulose xanthate incorporated into the alginate solution interacts and reacts with zinc ions, as supported by the literature [56]. Moreover, hydrogen bonding between cellulose xanthate molecules contributes to the stability of the beads. Figure 1 depicts the physical appearances of the beads in both wet and dry states.

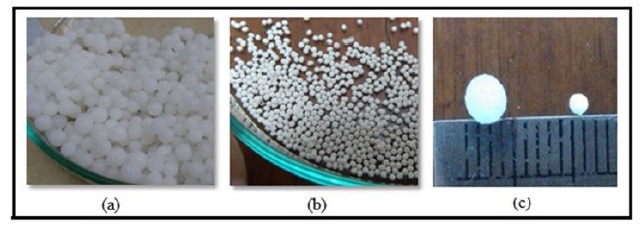

Figure 1. a) Wet beads, b) dry beads, and c) comparison of diameters for wet and dry beads

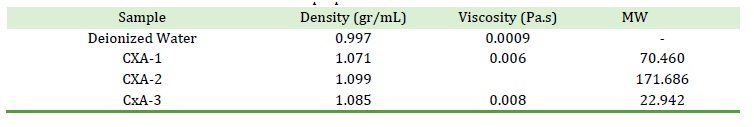

Table 1. Density, Viscosity, Molecular Weight (MW), and Swelling Ratio (SR) of the beads fabricated of viscose cellulose solution prepared with various NaOH Concentrations

Varying the NaOH concentration has clearly affected the physical properties of the viscose solution, including density, viscosity, and molecular weight. The detailed result presented in Table 1 shows that the beads obtained from 6% NaOH variation has predominantly surpassed the products of other variations on all parameters.

This concentration was used in the preparation of viscose solution CXA-2, producing solution of 1,099 gr/ml density and viscosity of 0.024 Pa.s. The viscosity of cellulose solution prepared using 6% NaOH ranges from 2.3-2.5 Pa.s [57].

This huge difference in result occurred because the cellulose employed in this study was of natural material, while his research used synthetic cellulose. CX2 also exhibits higher molecular weight compared to the product of other variations, thus was selected for further use as the precursor in beads production.

Varying the concentration of NaOH used to dissolve cellulose xanthate suspension apparently has affected the swelling ratio of the produced beads as well. Table 1 and Figure 2 show that the utilization of 6% (w/w) NaOH (CXA-2) resulted in the best viscose solution.

High swelling ratio is one of the reasons CXA-2 was chosen for further use as the precursor for beads production. This result is supported by FTIR spectra of CXA-2 (Figure 3) which shows that it has the highest intensity of OH group among all samples, indicating the abundance of OH group contained within the beads. The abundant OH groups within alginate and cellulose xanthate beads bind water molecules and lead to an increase in swelling ratio.

We compared alginate:cellulose xanthate composites ranging from a 2:0 to a 2:30 ratio, incrementally increasing the cellulose content during bead fabrication. An increase in cellulose xanthate composition leads to a more substantial water-binding capacity between the molecule and the crosslinking agent, observable during the immersion process. Consequently, the beads with 2:16 and 2:30 ratios are larger than those of other composites, as illustrated in Figure 4.

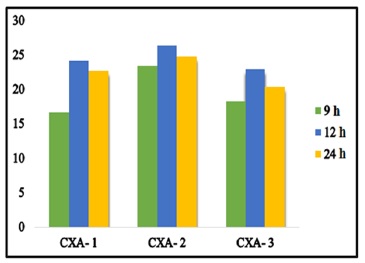

Figure 2. Swelling ratio of beads prepared with viscose solutions varying in NaOH concentration

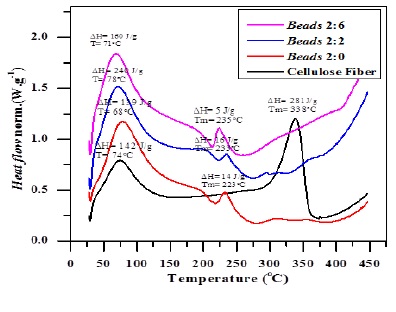

Figure 3. Thermogram of cellulose fibre and beads of various alginate/cellulose xanthate compositions of 2:0, 2:2, and 2:6

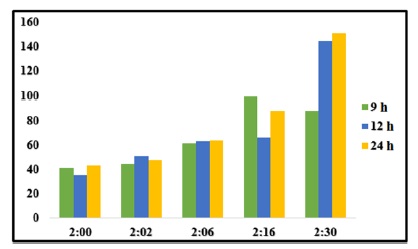

Figure 4. Swelling ratio of beads prepared with various alginate/cellulose xanthate compositions

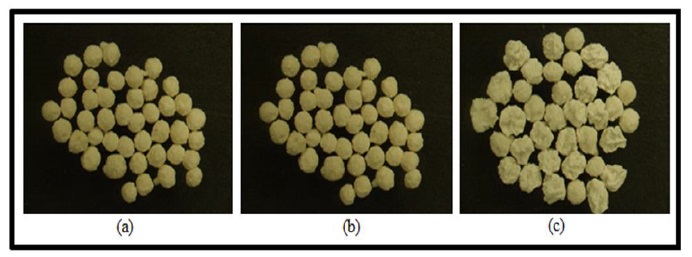

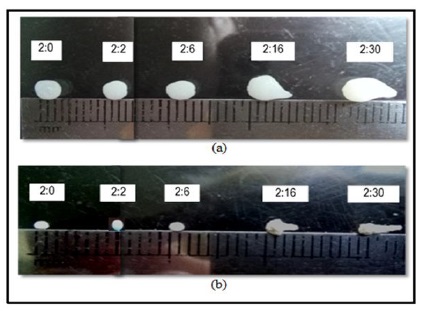

Figure 5. Physical appearance of (a) wet, and (b) dry beads of various alginate/cellulose xanthate compositions

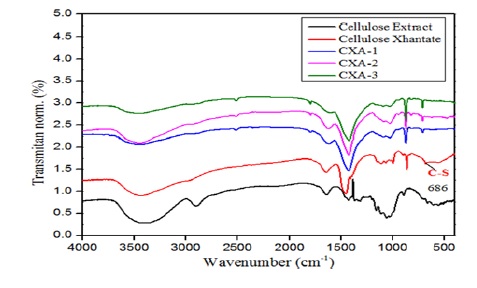

Figure 6. FTIR spectra of cellulose extract, cellulose xanthate, CXA-1, CXA-2, and CXA-3 beads

The profusion of hydroxyl (-OH) groups within these composites also contributes to an increase in swelling power. However, higher levels of cellulose xanthate present challenges in forming perfectly spherical beads. Although a high content of hydroxyl groups in the beads correlates with increased swelling power, the FTIR spectra show that beads with a 2:6 ratio are less crystalline than those with a 2:2 ratio; the latter exhibits a sharper hydroxyl peak (Figure 6). This sharper peak indicates that the 2:2 ratio beads have higher crystallinity and density compared to the 2:6 ratio beads. The DSC measurements, presented in Figure 7, support this finding; as the enthalpy of fusion (ΔHf) value increases, so does the material crystallinity, which facilitates bead formation. In this study, beads with a 2:2 ratio displayed the highest ΔHf value of 16 J/g, confirming their superior crystallinity among the samples tested.

The study revealed that the alginate to cellulose xanthate ratio is a crucial factor in determining the geometry of the beads. Beads with a 2:0 ratio exhibit a more uniform shape compared to the 2:2 ratio, and those with a 2:6 ratio tend to have creased surfaces.

Diameter analysis, conducted using ImageJ software, indicates significant size differences among the beads. Figure 8 delineates the diameter of swollen beads after a 24-hour period, highlighting that beads with a 2:6 alginate/cellulose xanthate ratio have the largest average diameter, measuring up to 2.1 mm. It is evident that an increased cellulose ratio directly correlates with bead size.

The SEM images, as depicted in Figure 7,  reveal that adding cellulose significantly alters the bead surface. Even at 500x magnification, the impact is visible as cellulose microfibrils create a more porous surface, which becomes increasingly evident at 15,000x. A higher concentration of cellulose in the beads leads to the formation of pores across the entire bead surface. In contrast, the 2:0 ratio beads, made solely of alginate, present a smoother and poreless exterior. Furthermore, the 2:6 ratio beads exhibit deeper and more extensive cavities compared to the 2:2 ratio, corroborating the optical microscopy findings (Figure 5), which show that the 2:6 beads have a heavily creased surface and are not as spherical as the 2:2 beads.

Figure 7. Image representing the EDX analysis data from Table 2 in the paper, showcasing the percentage weight of elements (Zn, Ca, O, C) in alginate/cellulose beads at different ratios

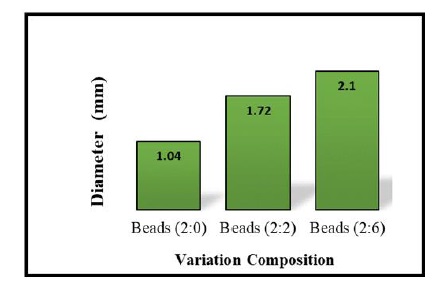

Figure 8. Diameter of swollen beads with various alginate/cellulose xanthate compositions: 2:0, 2:2, and 2:6

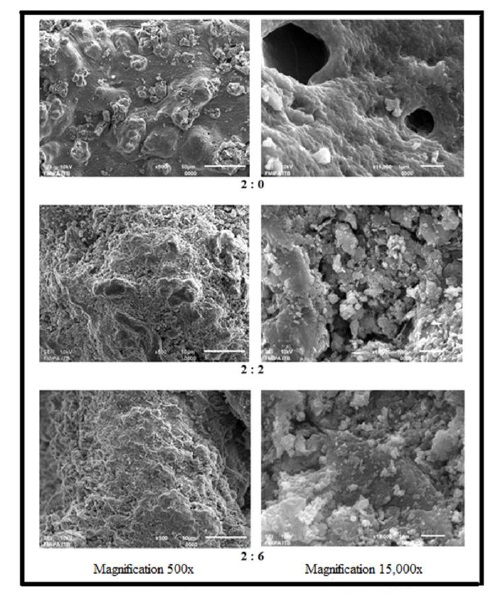

Figure 9. SEM images of alginate/cellulose xanthate composites at 500x and 15,000x magnifications, featuring composition variations of 2:0, 2:2, and 2:6

Figure 10. Optical microscopic images of beads with varying alginate/cellulose xanthate compositions: (a) 2:0, (b) 2:2, and (c) 2:6

Table 2 presents the SEM-EDX data, which clearly shows an increase in Zn ion percentage with a higher cellulose ratio, highlighting the strong binding affinity between Zn²⁺ ions and the active groups in cellulose. This is supported by the FTIR spectra (Figure 6), which demonstrate significant alterations in the alginate spectra, especially in the 89-1200 cm^-1 region, reflecting the bond vibrations related to β-glycosidic linkages, C-O and OH in-plane bending, C–O–C anti-symmetric bridge stretching, and C–O stretching [73]. Table 2 summarizes the SEM-EDX data for alginate/cellulose beads with different alginate to cellulose ratios, specifically 2:0, 2:2, and 2:6. The SEM-EDX data provides insight into the elemental composition of the beads, showing the weight percentages of zinc (Zn), calcium (Ca), oxygen (O), and carbon (C) in each type of bead.

As the cellulose ratio increases, there is a noticeable rise in the percentage of Zn ions, signifying a strong interaction between Zn²⁺ ions and the active groups in cellulose, which points to an affinity for Zn²⁺ within the cellulose structure. This observation is further substantiated by alterations in the FTIR spectra, especially in the 890-1200 cm^-1 region, which reflects the bond vibrations related to β-glycosidic linkages C-O and OH in-plane bending, C–O–C anti-symmetric bridge stretching, and C–O stretching.

The SEM-EDX analysis depicted in the image provided visually represents this data. The peaks correspond to the elemental composition, and their heights reflect the weight percentages, as detailed in Table 2.

The graph is a representation of the elemental analysis, where the vertical axis indicates the weight percentage and the horizontal axis represents the detected elements. The increase in the peak corresponding to Zn with higher ratios of cellulose is clearly illustrated, which aligns with the table's data, highlighting the beads' changing composition with varying ratios of alginate to cellulose.

Figure 10 shows the DSC thermograms of cellulose fibers and beads with varying alginate/cellulose xanthate ratios. These thermograms indicate that an increased cellulose content within the beads corresponds to a more amorphous structure. Notably, beads with ratios of 2:16 and 2:30 exhibit a very low enthalpy of fusion (ΔHf), indicative of an amorphous structure, which results in a higher swelling ratio and presents challenges in maintaining spherical shapes, as presented in Figure 4. Furthermore, the data suggest a proportional relationship between the cellulose ratio and the melting point of the material. This increase in melting point, as seen in the thermograms, can be attributed to the rise in molecular weight, which is reflective of the interactions within the polymer matrices, the influence of particle size, and the homogeneity of the particles.

Figure 6 displays the FTIR spectra for CX-1, CX-2, and CX-3 beads, alongside those for cellulose extract and cellulose xanthate. We observed the stretching of the OH group at 3441 cm^-1, the aliphatic C-H bond vibration at 2930 cm^-1, the C-C bond at 1616-1427 cm^-1, and the C-O-C bond at 1093-1031 cm^-1. The spectra reveal that extraction significantly alters the material, showcasing a clear distinction in functional groups between the cellulose extract and cellulose xanthate. Notably, the cellulose extract spectra lack several peaks, including the one at 1732 cm^-1, which we attribute to the acetyl (CH3OC-) group vibration, the aromatic C=C group at 1515 cm^-1, and a peak at 830 cm^-1. These absences indicate the removal of lignin compounds during extraction, aligning with findings by [65]. Furthermore, the increase in cellulose content in the extract is evidenced by the enhanced peak intensity at 1162-1034 cm^-1, corresponding to the C-O-C group vibration of the pyranose ring, and at 896 cm^-1, indicative of the β-glycosidic bond in cellulose, mirroring results reported by [73].

In addition, Figure 6 illustrates that CX-A1, CX-A2, and CX-A3 show varying intensities of the –OH group peak. This variation suggests that higher concentrations of sodium hydroxide (NaOH) in the viscose solution preparation lead to more cellulose being extracted, as indicated by the presence of a sharper –OH group peak. This trend persists until reaching an optimum concentration, beyond which the extracted cellulose content begins to diminish with further increases in NaOH concentration.

Figure 11 demonstrates that altering the alginate/cellulose xanthate composition noticeably impacts the FTIR spectra, particularly the OH group peak intensity. In beads with a 2:0 alginate-to-cellulose xanthate ratio, we observe a weak absorption of the OH group at 3441 cm^-1, which sharply increases in the 2:2 and 2:6 ratio products. The spectral patterns of the materials before (cellulose xanthate) and after ionic gelation with Zn²⁺ ions (beads with 2:0, 2:2, and 2:6 ratios) highlight the effective crosslinking between Zn²⁺ ions and cellulose polymers. The binding region for Zn²⁺ ions is characterized by β-glycoside bond vibration, C-O, OH in-plane bending, C-O-C anti-symmetric bridge stretching, and C-O stretching, corroborating the findings of [65].

The structural analysis of cellulose and cellulose xanthate in 11 reveals significant insights into their molecular architecture and interaction dynamics. The process of extracting and modifying cellulose from bagasse into cellulose xanthate significantly changes its chemical structure, increasing its application in forming alginate-cellulose xanthate granules. The FTIR spectrum highlighted in the image shows transformations characterized by the appearance and change of functional groups, indicating successful xanthation. This structural reconfiguration results in an increased abundance of hydroxyl groups, facilitating enhanced water absorption and swelling behavior, which is important for the beads application in adsorption and encapsulation. The interaction between alginate and cellulose xanthate, mediated by cross-linking agents, further contributes to the mechanical stability and porosity of the beads, thereby optimizing their function in various environmental and biomedical applications. This analysis underscores the importance of molecular structure in determining material properties and performance, offering a pathway for the synthesis of tailored biopolymer composites with desired characteristics. Figure 10 provides FTIR spectra for cellulose extract and cellulose xanthate, which are compared to the spectra of CX-1, CX-2, and CX-3 beads. The FTIR analysis reveals distinct features such as the stretching of the OH group at 3441 cm^-1, the aliphatic C-H bond vibration at 2930 cm^-1, the C-C bond at 1616-1427 cm^-1, and the C-O-C bond at 1093-1031 cm^-1. These observations indicate significant alterations in the material upon extraction, resulting in a clear distinction in functional groups between the cellulose extract and cellulose xanthate.

The cellulose extract spectra are characterized by the absence of several peaks present in the cellulose xanthate spectra. These absent peaks include the one at 1732 cm^-1, attributed to the acetyl (CH₃OC-) group vibration, the aromatic C=C group at 1515 cm^-1, and a peak at 830 cm^-1, indicating the removal of lignin compounds during the extraction process. The increase in cellulose content in the extract is evidenced by the enhanced peak intensity at 1162-1034 cm^-1, corresponding to the C-O-C group vibration of the pyranose ring, and at 896 cm^-1, indicative of the β-glycosidic bond in cellulose. Furthermore, the intensity variations of the –OH group peak in the spectra of CX-A1, CX-A2, and CX-A3 suggest that higher concentrations of sodium hydroxide (NaOH) in the viscose solution preparation lead to more cellulose being extracted, as indicated by a sharper –OH group peak.

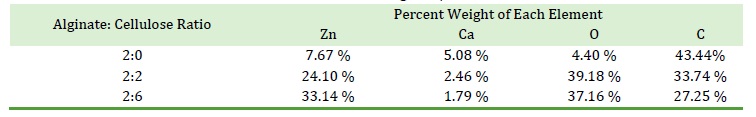

Table 2. SEM-EDX result of alginate/cellulose beads

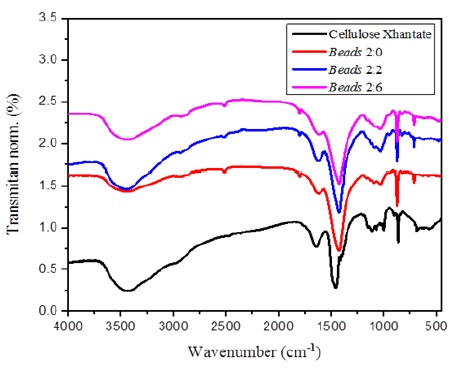

Figure 11.  FTIR spectra of cellulose xanthate and beads of 2:0, 2:2, and 2:6 composition ratio

This FTIR spectral analysis is crucial for understanding the structural changes and the nature of interactions within the beads, which are influenced by the processing conditions and the materials used. The molecular structure determined by FTIR plays a significant role in the material properties and performance, especially for applications that require specific interactions, like adsorption and encapsulation in environmental and biomedical fields.

Conclusion

This study demonstrates that a 6% sodium hydroxide (NaOH) concentration yields the optimal results for preparing cellulose viscose solutions used in synthesizing alginate/cellulose xanthate beads. We arrived at this conclusion by comparing the swelling ratios of products produced under various conditions. The optimal concentration variation is characterized by the highest swelling ratio, recorded at 50.8%, and the most pronounced intensity of the OH group in the infrared (IR) spectra. Moreover, the ideal alginate/cellulose xanthate composition is achieved at a 2:2 ratio, where the beads showcase the most significant intensity of the OH group on FTIR spectra, a heat flow (ΔHf) value of 16 J/g, and a swelling ratio of approximately 63.8%. Characterization outcomes indicate that incorporating cellulose in varied compositions markedly influences the beads' shape, porosity, crystallinity, swelling ratio, diameter, and surface topology. Furthermore, the findings suggest that increasing the polymer composition leads to a higher formation of pores, thereby enhancing the swelling capability and diameter of the beads.
